Communication Ports

R80 Communication Ports

Introduction

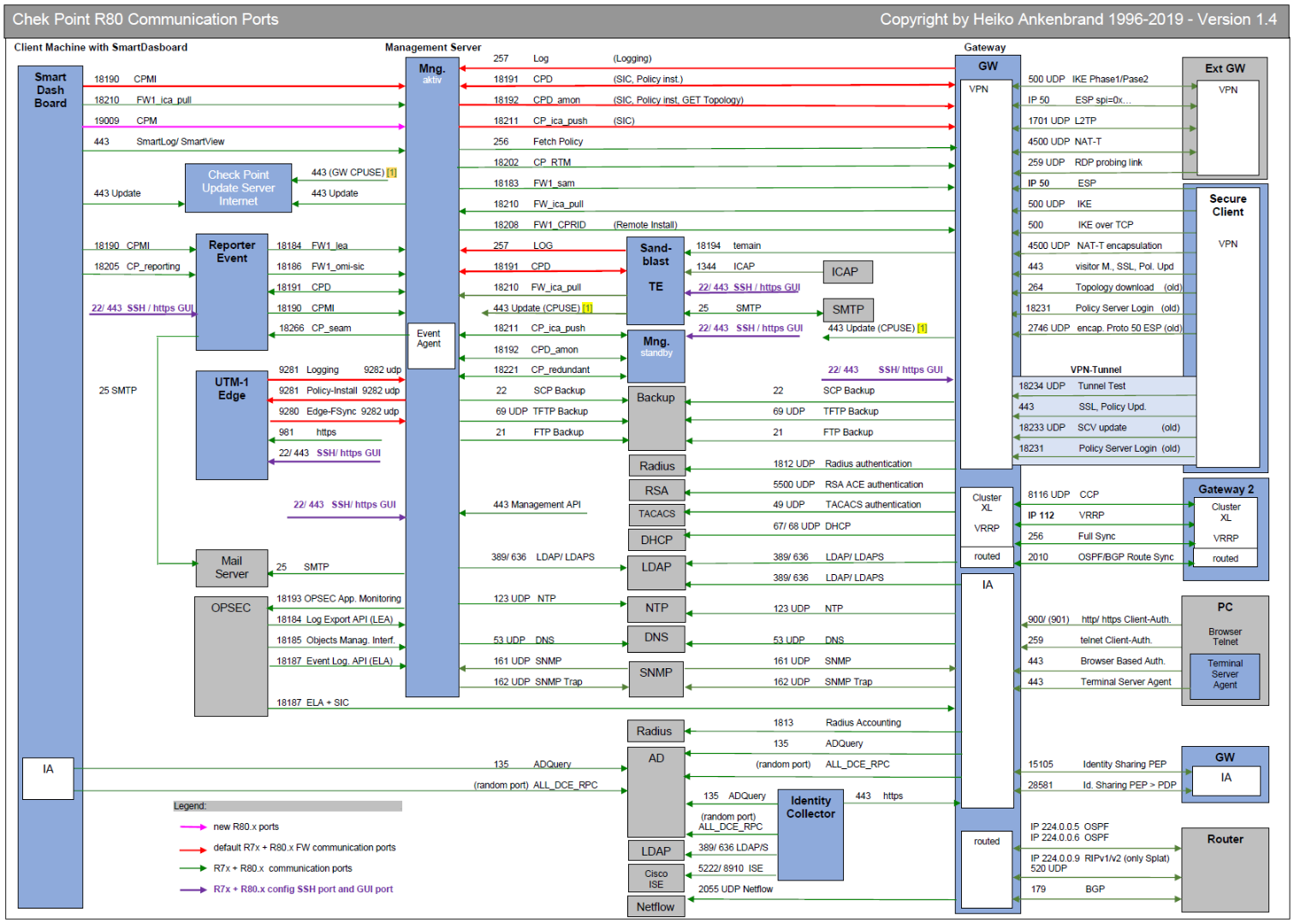

This drawing should give you an overview of the used R80 and R77 ports respectively communication flows. It should give you an overview of how different Check Point modules communicate with each other. Furthermore, services that are used for firewall operation are also considered. These firewall services are also partially mapped as implied rules in the set on the firewall.

Overview

References

Support Center: Ports used by Check Point software

Versions

+ v1.4a bug fix, update port 1701 udp L2TP 09.04.2018
+ v1.4b bug fix 15.04.2018
+ v1.4c CPUSE update 17.04.2018
+ v1.4d legend fixed 17.04.2018
+ v1.4e add SmartLog and SmartView on port 443 20.04.2018
+ v1.4f bug fix 21.05.2018
+ v1.4g bug fix 25.05.2018
+ v1.4h add Backup ports 21, 22, 69 UDP and ClusterXL full sync port 256 30.05.2018
+ v1.4i add port 259 udp VPN link probeing 12.06.2018
+ v1.4j bug fix 17.06.2018
+ v1.4k add OSPF/BGP route Sync 25.06.2018
+ v1.4l bug fix routed 29.06.2018
+ v1.4m bug fix tcp/udp ports 03.07.2018
+ v1.4n add port 256 13.07.2018
+ v1.4o bug fix / add TE ports 27.11.2018
+ v1.4p bug fix routed port 2010 23.01.2019
+ v1.4q change to new forum format 16.03.2019
